ETL+ Load Upsert Example 2

Simple Upsert example. No deleted source records, no changes to key.

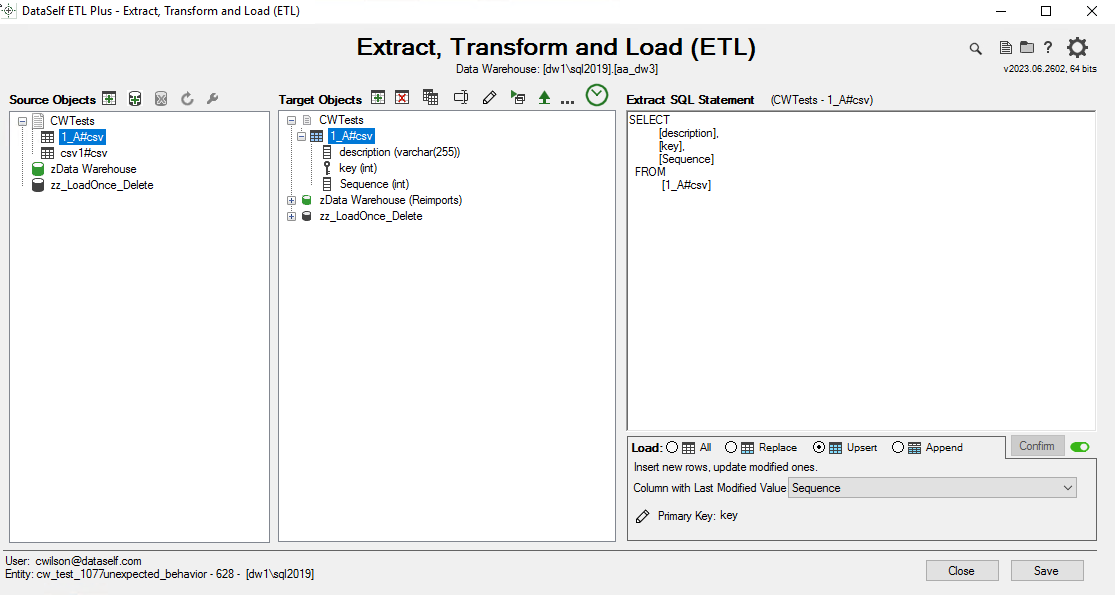

ETL Configuration

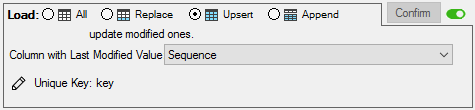

Load Upsert panel.
Sequence is the highwater column

See Load Upsert panel lower right.

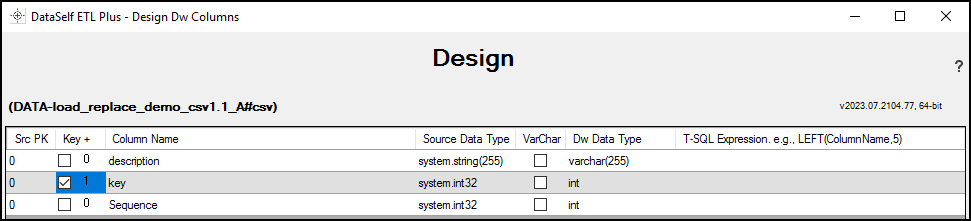

key column marked as the Key+ column.
For upsert processing the column(s) marked as Key+ function as a logical unique key.

Initial Load Upsert

Data Source

Target Table After Initial Load Upsert

ETL+ Preview page

From SSMS,
highwater mark in Sequence column after Load Upsert is 104

ETL Log: (4 rows loaded)

2nd Load Upsert

The first step of the upsert process extracts the highwater mark from the target table. In this example the highwater mark is before the from Sequence column in target table before Upsert is 104.

Before: The highwater mark is 104. (See Sequence column in Target Table after step above)

Data Source

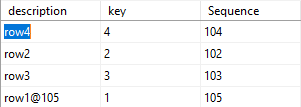

Target Table After 2nd Upsert

1st row changed to
Sequence = 105

Data from SSMS,
new highwater mark is 105

ETL Log: (2 rows upserted)

Alternative View:

Target table before 2nd Upsert

Source data for 2nd Upsert

Target Table after 2nd Upsert

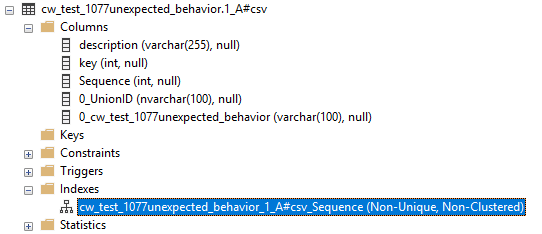

Target Table in Database

Included for those interested. Very few users need to know the internals of the database tables storing the data warehouse.
