Tables
Pre-mapped ETL+ tables available for Microsoft Dynamics GP as of 11/2023. Subject to change without notice.
Source | Table Name |
|---|---|
MS Dyn GP | IV00101 |
MS Dyn GP | IV00102 |
MS Dyn GP | IV30200 |
MS Dyn GP | IV30300 |
MS Dyn GP | IV40400 |
MS Dyn GP | IV40700 |
MS Dyn GP | PM00100 |
MS Dyn GP | PM00200 |
MS Dyn GP | PM00201 |
MS Dyn GP | PM20000 |
MS Dyn GP | PM30200 |
MS Dyn GP | PM40102 |
MS Dyn GP | POP10500 |
MS Dyn GP | POP30100 |
MS Dyn GP | POP30110 |
MS Dyn GP | POP30300 |
MS Dyn GP | POP30310 |
MS Dyn GP | RM00101 |
MS Dyn GP | RM00201 |
MS Dyn GP | RM00301 |
MS Dyn GP | RM00303 |
MS Dyn GP | RM20101 |
MS Dyn GP | RM30101 |
MS Dyn GP | SOP10100 |
MS Dyn GP | SOP10200 |
MS Dyn GP | SOP30200 |
MS Dyn GP | SOP30300 |
MS Dyn GP | SY00600 |
Data Warehouse | _AP_Aging_Today |
Data Warehouse | _AR_Aging_Today |
Data Warehouse | _IN_On_Hand_Today |
Data Warehouse | _Purchase_Order |
Data Warehouse | _Sales_Invoice |
Data Warehouse | _Sales_Order |
Data Warehouse | 4_Today |
Data Warehouse | 5_Date |
Data Warehouse | 6_DatePeriod |
Data Warehouse | PM20000_PM30200 |
Data Warehouse | zDateUntreated |
Data Warehouse | zEntity |
Data Warehouse | zLog_ETL |
Data Warehouse | zLog_TableStats |
Notes:
Some of the above tables will only be deployed using customized SOWs or via services.
We only recommend extracting tables that are important for your reporting purposes.
Microsoft Dynamics GP
The out-of-the-box ETL+ and data warehouse mappings have been designed to let users easily extract the data from MS Dyn GP.
Source: MS Dyn GP: MS Dyn GP tables that have been pre-mapped in ETL+. They are part of DataSelf Step 1 - mirroring MS Dyn GP raw data in the data warehouse. This pre-mapping includes:
Popular tables and columns for BI and reporting. We only map popular tables and columns to keep the extraction efficient and less taxing on resources. It’s easy to add more tables and columns via ETL+.
Large tables come pre-configured with delta refresh set up. This includes delta Load Type settings, as well as column data type formatting and indexing.
Source: Data Warehouse: These are special tables that provide enhanced reporting value. Summary:
4_ 5_ and 6_ tables for advanced period analytics.
Table Columns Example
DataSelf ETL+ templates include adjustments to table columns' data types and indexes. Click here to learn more.

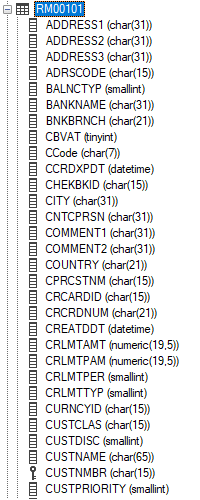

The following is an example of MS Dyn GP table and its column names, indexes, and formatting in ETL+. Ex.: CUSTNMBR is the primary key of this table.
Delta Load Example
DataSelf ETL+ templates provide delta load configuration for popular large tables. This dramatically reduces the time to refresh the data warehouse. ETL+ Table Load Types.

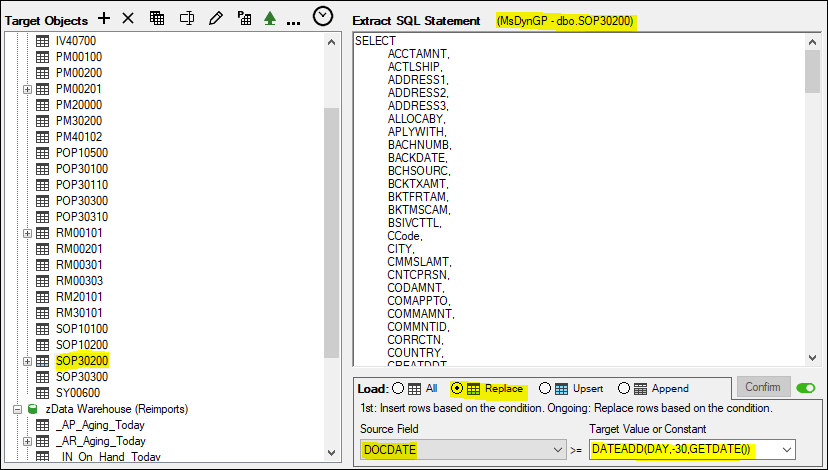

The following is an example of SOP30200 using the Replace feature. This example only updates the last 30-days worth of transactions.
Using table linking in the ETL SQL Statement, one can link detail tables that don’t have date fields with their parent tables and then set up the delta refreshes.
Table Linking Example

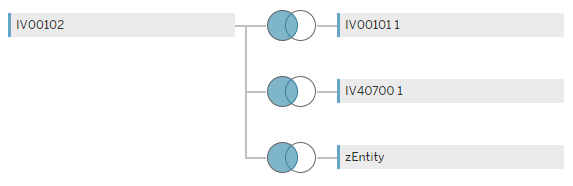

The following is an example of how _IN_On_Hand_Today tables are linked in DataSelf’s out-of-the-box templates. This linking applies the same way for Tableau data sources, Power BI data sets, Excel, and other reporting tools.
