Connecting to a SQL Data Warehouse
Connect to a DataSelf data warehouse with Microsoft SQL Server/SSMS, Excel, Tableau, Power BI and other reporting utilities.
If your data warehouse is hosted on a DataSelf Cloud see Connecting to a DataSelf SQL Cloud Data Warehouse
Requirements
A Microsoft SQL Server user license
A URL or IP to your MS SQL data warehouse.
The ETL+ Extract, Transform and Load (ETL) Page page displays the of the data warehouse connected to this ETL+ session. This metadata is formatted as
[<MS SQL Instance Name>]
.[<Database name>]
. For more see ETL+ Metadata.
The MS SQL database name(s) of your data warehouse (example:
DwXyzcorp
)A tool to connect to the cloud MS SQL database such as DataSelf ETL+, MS Excel, Crystal Reports, Tableau, Power BI, Qlikview, SSMS (SQL Server Management Studio), SSRS (SQL Server Reporting Services), and SSAS. See below for further instructions.
Data Warehouses On-premises / Private Cloud
Contact DataSelf to connect your ETL+ to your private data warehouse.
SSMS
Open SQL Server Management Studio (SSMS).

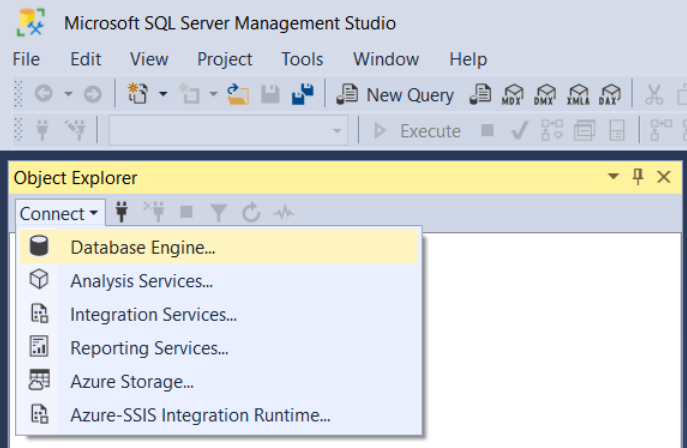

click Connect > Database Engine.
Click Connect on Object Explorer panel > Database Engine
![](../__attachments/1860534273/image-20210922-225734.png?inst-v=a33ad75e-8fc6-41aa-a53e-3a49a14fd4b2)

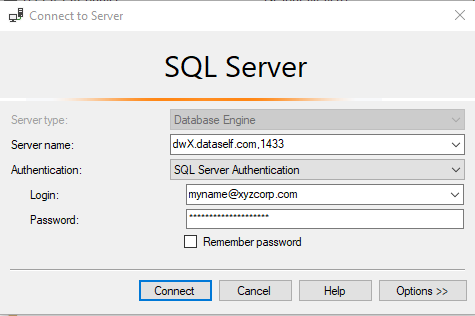

SQL Server panel.
Server name: Enter the URL to your MS SQL data warehouse
Authentication: Select the authentication method and credentials if applicable.

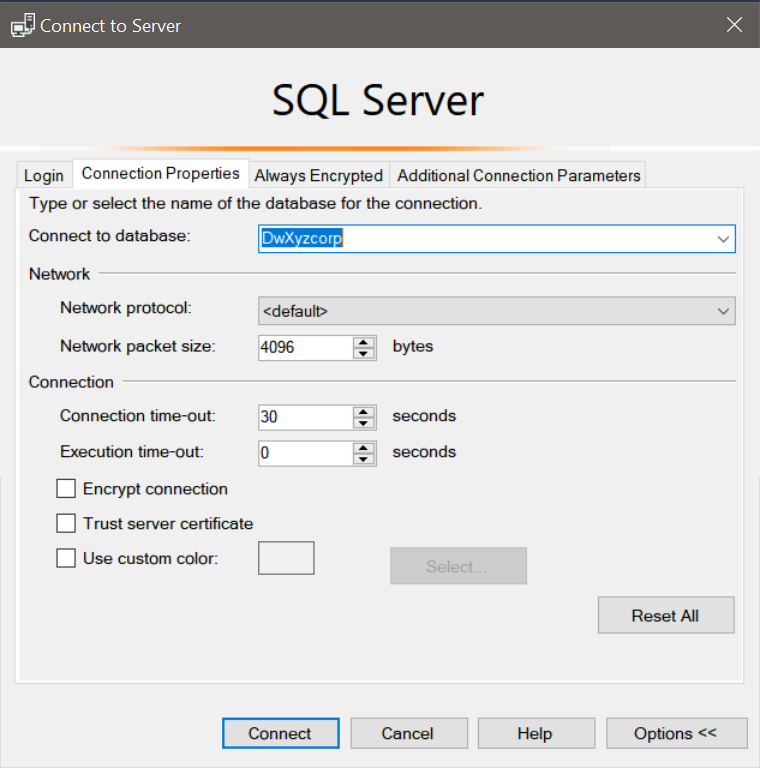

If your data warehouse uses a SQL database with Containment type = Partial:
Click Options >>.
Connect to database: Enter MS SQL database name (example:
DwXyzcorp
).
Click Connect.
![image-20240503-195620.png](../__attachments/1860534273/image-20240503-195620.png?inst-v=a33ad75e-8fc6-41aa-a53e-3a49a14fd4b2)
Click Options >>.
Use when database Containment type is Partial
.
MS Excel
Open Microsoft Excel
Go to Data ribbon > Get Data > From Database > From SQL Server Database

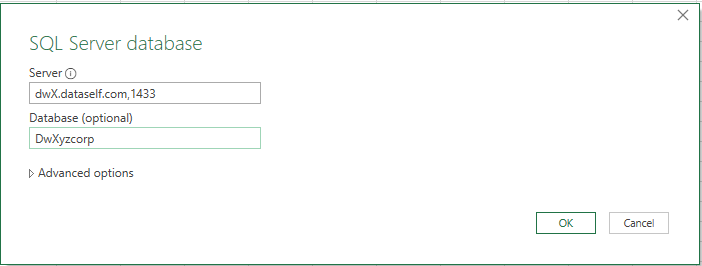

Server box: Enter the URL to your MS SQL data warehouse
Database box: Enter MS SQL database name).
Click Ok.

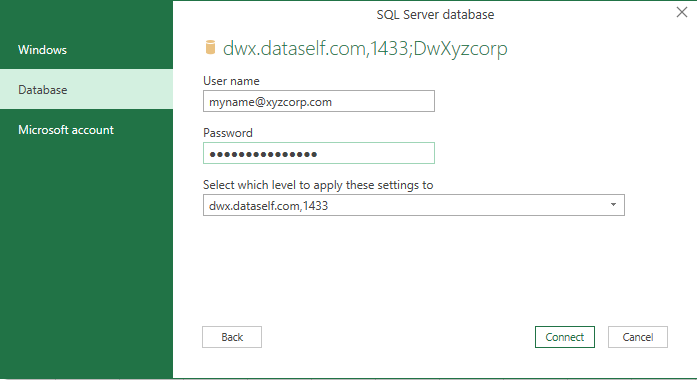

Select Database on the left pane.
Enter User name and Password.
Click Connect.
![](../__attachments/1860534273/image-20210922-231759.png?inst-v=a33ad75e-8fc6-41aa-a53e-3a49a14fd4b2)
![](../__attachments/1860534273/image-20210922-231839.png?inst-v=a33ad75e-8fc6-41aa-a53e-3a49a14fd4b2)
Tableau Desktop

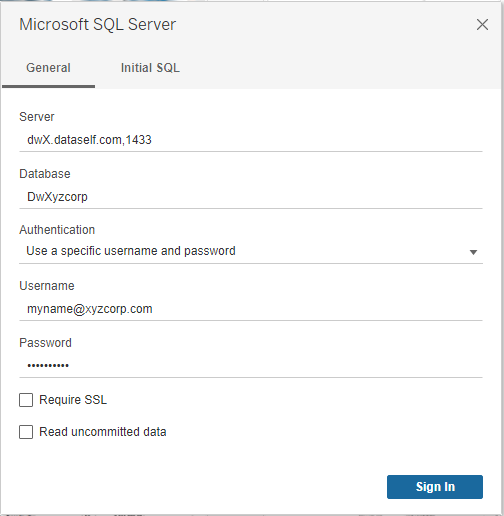

In Tableau Desktop right panel, click Microsoft SQL Server.
Server box: Enter the URL to your MS SQL data warehouse
Database box: Enter MS SQL database name
Select Use a specific username and password.
Enter User name and Password.
Click Sign In.
![](../__attachments/1860534273/image-20210922-232244.png?inst-v=a33ad75e-8fc6-41aa-a53e-3a49a14fd4b2)
Power BI Desktop

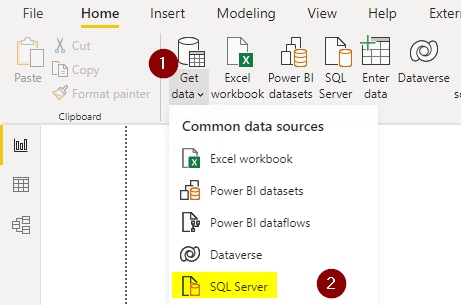

In Power BI Desktop, select
Get Data
from the top ribbon thenSQL Server.

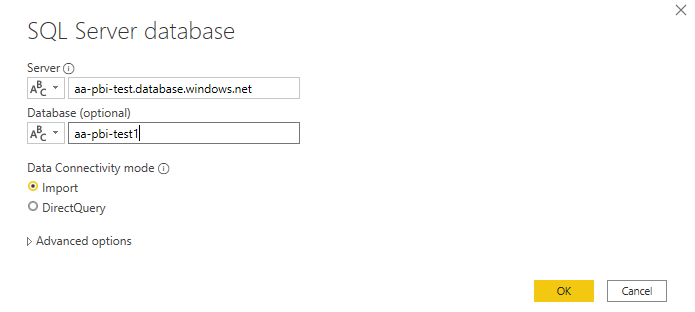

Server
box: Enter the URL to your MQ SQL data warehouse.Database
box: Enter the MS SQL database name.Typically you will be using the
Import
data connectivity mode.Select
OK

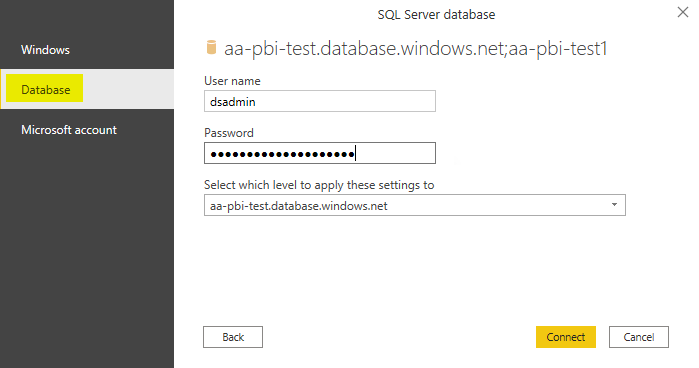

to proceed.Select
Database
then inputUser name
andPassword
and select Connect.
IMPORTANT: Power BI Service scheduled dataset refreshes require your Data Warehouse to be an Azure SQL Database. All other on-premises or private cloud data sources (including a MS SQL Database on an Azure VM) require the use of a Power BI Gateway to connect and allow scheduled dataset refreshes. See Power BI Gateway for more information.
