ETL+ Source Driver for MySQL

Creates and manages that connect to MySQL data bases.

v2026.01

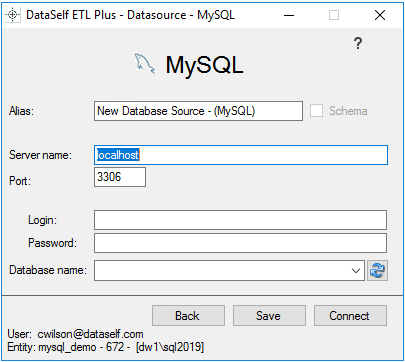

MySQL Page


Add Source: New MySQL connection.

Properties: Maintain MySQL connection.

Refresh: Update source MySQL database metadata.


Where to Find in ETL+


  • Alias. The name for the source object shown on the Source Objects panel. Unless customized the name will be automatically generated based on feed(URL).

  • Schema: Check this box if you want all target tables from this source to be assigned into a SQL schema named <Schema Name>.

  • Server name.

  • Port.

  • Login.

  • Password.

  • Database name.

    Refresh – loads list of database names

  • Device: Be sure to set the Device to a computer with direct access to the MySQL Db.

  • Back. Leave the page without saving or attempting to connect.

  • Connect. Connect to the source. Same function as Refresh.

  • Save. Save the configuration without attempting to connect.


Help

Change DataSource. Only shown when opened by Properties.

How to Add MySQL Connections

  1. Open the ETL+ Extract, Transform and Load (ETL) Page for the ETL+ entity to edit.

  2. Select Add Source > MySQL

For more see the MySQL Page section above.

How to Maintain MySQL Connections

  1. Open the ETL+ Extract, Transform and Load (ETL) Page for the ETL+ entity to edit.

  2. Select a MySQL based Source Object on the Source Objects panel.

  3. Select Properties > MySQL

For more see the MySQL Page section above.

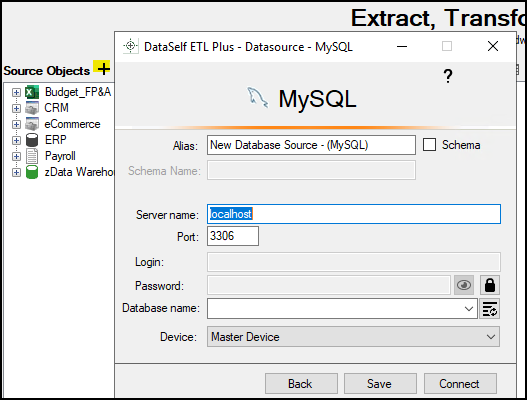

Position in the ETL+ Interface
