ETL+ Source Driver for Oracle
Creates and manages Source Objects that connect to Oracle data bases. 🛠️ Work in progress.
v2026.01

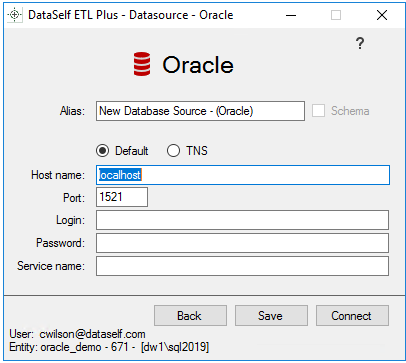

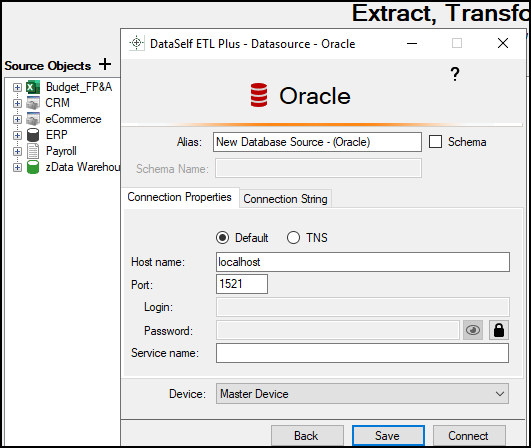

Oracle Page
Source Objects panel toolbar
Add Source: New Oracle connection.
Properties: Maintain Oracle connection.
Refresh: Update source Oracle database metadata.
Where to Find in ETL+
Alias. The name for the source object shown on the Source Objects panel. Unless customized the name will be automatically generated based on Oracle feed(URL).
Schema: Check this box if you want all target tables from this source to be assigned into a SQL schema named <Schema Name>.
Default / TNS.
Host name. Can be a IP address.
Port.
Login.
Password.
Device: Be sure to set the Device to a computer with direct access to the Oracle Db.
Back. Leave the page without saving or attempting to connect.
Connect. Connect to the Oracle source. Same function as Refresh.
Save. Save the configuration without attempting to connect.
 | Help |
 | Change DataSource. Only shown when opened by Properties. |
How to Add Oracle Connections
Open the ETL+ Extract, Transform and Load (ETL) Page for the ETL+ entity to edit.
Select Add Source > Oracle
For more see the Oracle Page section above.
How to Maintain Oracle Connections
Open the ETL+ Extract, Transform and Load (ETL) Page for the ETL+ entity to edit.
Select a Oracle based Source Object on the Source Objects panel.
Select Properties > Oracle
For more see the Oracle Page section above.
Related ETL+ Pages
Position in the ETL+ Interface
Extract, Transform and Load (ETL) page
Add Source, Properties or Refresh buttons
